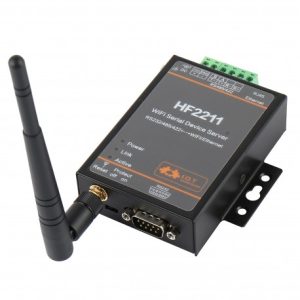

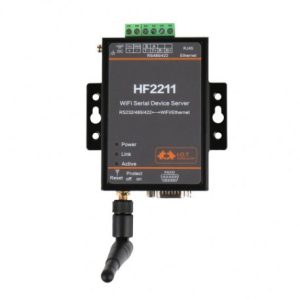

HF2211
IOT Device Product
The HF2211 provides RS232/RS485/RS422 interface to Ethernet/Wi-Fi connectivity to web enable any device. The HF2211 integrate TCP/IP controller, memory, 10/100M Ethernet transceiver, highspeed serial port and integrates a fully developed TCP/IP network stack and ECos OS. The HF2211 also includes an embedded web server used to remotely configure, monitor, or troubleshoot the attached device.
The HF2211 using highly integrated hardware and software platform. It has been optimized for all kinds of applications in the industrial control, smart grid, personal medical application and remote control that have lower data rates, and transmit or receive data on an infrequent basis.
The HF2211 integrates all serial to Ethernet functionality with 95 x 65 x 25mm size.
Specification
| Processor | MIPS |
| Basic Frequency | 320MHz |
| Flash | 4MB |
| SDRAM | 8MB |
| Operating System | eCos |
| Ethernet | |
| Interface Standard | 1 RJ45 |
| Rate | 10/100M |
| Protection | 8KV Isolation |
| Network Protocol | IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP, BOOTP, AutoIP, ICMP，Web socket, Telnet, FTP,TFTP, uPNP, NTP, SNMP,Modbus TCP |
| Security Protocol | SSL v3 AES 128Bit DES3 |
| Standard | 802.11 b/g/n |
| Network Mode | STA/AP/STA+AP |
| Access Terminal Quantity in AP Mode | Max 32 |
| Transmit Power | 802.11b: +20dBm(Max.) 802.11g: +18dBm(Max.) 802.11n: +15dBm(Max.) |
| Receive Sensitivity | 802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm |
| Wi-Fi Security | WEP64/WEP128/TKIP/ AES |
| Antenna Interface | 3dBi antenna |
| Port Number | 1RS232/RS485/RS422 |
| Interface Standard | RS232: DB9 RS485/RS422: 5.08mm connector |
| Data Bits | 8 |
| Stop Bit | 1,2 |
| Check Bit | None，Even，Odd |
| Baud Rate | TTL: 300 bps~230400bps |
| Flow Control | No Flow control Hardware RTS/CTS、DSR/DTR Software Xon/ Xoffflow control |
| Buffer | 4K |
| Configuration | Web CLI XML import Telnet IOTManagerPC Software |
| Virtual Serial | Windows, XP/Vista, 7， Server 2003/2008 |
| Size | 95mm x 65mm x 25mm |
| Operating Temp. | -25 ~ 85°C |
| Storage Temp. | -45 ~ 105°C，5 ~ 95% RH（no condensation） |
| Input Voltage | 5~36VDC or 9~50VDC |
| Working Current | ~200mA |
| Power | <700mW |
| Certificate | FCC_CE_RoHS_SRRC_REACH |
| Accessory | 1* Power Adapter 1* Serial Cable 1* Ethernet Cable 1* WiFi Antenna |
