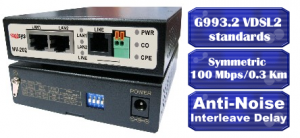

NV-202 (VDSL2 Bridge)
General Description
NV-202 is a VDSL2 single port bridge equipped with two 10/100Mbps Ethernet ports that provide an economical solution for commercial-grade applications. Compliant with ITU-T G.993.2 VDSL2 standard, the NV-202 supports a maximum bandwidth of up to 100Mbps symmetric in VDSL2
Profile (30a) solution. The NV-202 also supports both central office (CO) and customer-premises equipment (CPE) modes selectable through DIP Switch.
Since VDSL2 has the characteristic of higher bandwidth over shorter distances, the ideal architecture for Telcoms is to use fiber optic lines as the backbone and a VDSL2 line as the last mile into the home or office. With outstanding throughput, the NV-202 can complement a fiber network to offer the best solution for delivering Triple play(Video/Voice/Data) or home entertainment services.
Key Features & Benefits
• Supports RJ-11/Terminal Block combo for Line port.
• Supports high bandwidth up to 100Mbps symmetric over Line ports
• Support long reach mode up to 3 km with 24 gauge phone wire
• Support auto speed for Line port and Interleave mode selectable through CO side DIP switch
• DIP switch with CO and CPE mode selectable
• Supports interleave / INP & noise margin config by DIP Switch
• Supports Surge protection
• Supports wall mounting
• Supports DIN-Rail mount installation (Optional)
• Compact size and metal case design
• Supports point-to-point applications
