R1520 Dual-SIM Cellular VPN Router

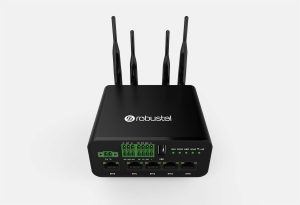

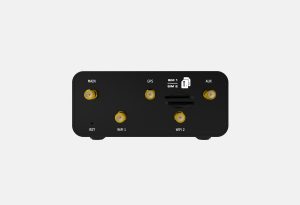

The R1520 router from Robustel is a versatile 4G router with 5 x Ethernet ports, GPS and E-mark certification for in-vehicle use. It is also ideal for Smart Cities and Retail applications.
The R1520 router from Robustel is a versatile 4G router with 5 x Ethernet ports, GPS and E-mark certification for in-vehicle use.
Other hardware features include optically isolated digital inputs and outputs as well as a 10-bit analogue input capable of interfacing directly with sensors in the range of 0 to 24Vdc or 0 to 20mA.
R1520 also has a 2-wire RS485 interface for connection to legacy instruments with full support for Modbus. The RS232 port features RTS/CTS lines so the product can accommodate applications that require hardware handshaking.
| Cellular Interface | |
| Number of antennas | 2 |
| Connector | SMA-K |
| SIM | 2 Mini SIM (2 FF) |
| Ethernet Interface | |
| Number of ports | 5 x 10/100 Mbps,5 LAN by default, can be configured as 1 WAN + 4 LAN |
| WAN port | Support 802.3af & 802.3at PD feature on ETH0 |
| Magnet isolation protection | 1.5 KV |
| WiFi Interface | |
| Number of antennas | 2 |
| Connector | RP-SMA-K |
| Standards | 802.11b/g/n, supports AP and Client modes |
| Frequency bands | 2.4 GHz |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
| Data speed | 2*2 MIMO, 300 Mbps |
| DI/DO | |
| Type | 1 x DI + 1 x DO, wet contact |
| Isolation | 3 KV |
| Socket form | 2 * 3-pin 3.5 mm female socket |
| Level | 3 to 30V DC = HIGH, 0 to 1 Vdc = LOW |
| Absolute maximum VDC | 30V DC（DI/DO） |
| Absolute maximum ADC | 10mA（DI/DO） |
| Analogue Input | |
| Type | 1 X AI (can be configured as voltage type or current type) |
| Voltage input range | 0 to 24 Vdc |
| Current input range | 4-20 mA (current-type input requires external resistance, and finally measured by voltage) |
| Socket form | 2 * 3-pin 3.5 mm female socket |
| Signal definition | AI，AGND |
| Serial Port | |
| Type | 1 x RS-232 + 1 x RS-485 serial port |
| Socket form | 2 * 4-pin 3.5 mm female socket |
| Signal definition | RXD TXD SGND RTS CTS（RS-232）
Data+ (A)，Data- (B)，ground(GND);(RS-485) |
| Device Interface | |
| 1 x GPS interface (Optional, depending on the cellular module) | |
| 1 x 480Mbps high-speed USB2.0 interface | |
| Others | |
| Reset button | 1 x RST |
| RTC | External RTC clock , Backup energy storage capacitor can be maintained for 2 days |
| LED indicators | 1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WiFi |
| Built-in | Watchdog, Timer |
| Basic features of RobustOS | |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | Web, CLI, SMS |
| App Center (Available Apps for RobustOS) | |
| Apps* | L2TP, PPTP, DMVPN, VRRP, QoS, Captive Protal, WLAN Multi AP, SNMP, Language, RCMS |
| *Request on demand. For more Apps please visit www.robustel.com. | |
| SDK | |
| Supported programming language | C, C++ |
| Flash available for SDK | 4 MB |
| RAM available for SDK | 64 MB |
| Power Supply and Consumption | |
| Connector | 2 pin 3.5 mm socket with lock |
| Input voltage | 9 to 36V DC |
| Power consumption | Idle: 100 mA@12 V Data link:1.0 A (peak) @12 V |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Plastic, 250 g |
| Dimensions | 105 x 90 x 46 mm |
| Installations | Desktop, wall mounting and 35 mm DIN rail mounting |
| Operating temperature | -25 ~ +70 °C |
| Storage temperature | -40 ~ +85 °C |
| Relative humidity | 5 ~ 95% RH |
| Regulatory and Type Approvals | |
| Environmental | RoHS2.0, WEEE |
| EMI | EN 55032: 2012/AC: 2013 (CE & RE) Class B |
| EMS | IEC 61000-4-2 (ESD) Contact Level 2 IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 2 IEC 61000-4-6 (CS) Level 2 IEC 61000-4-11 (DIP) Level 2 |
